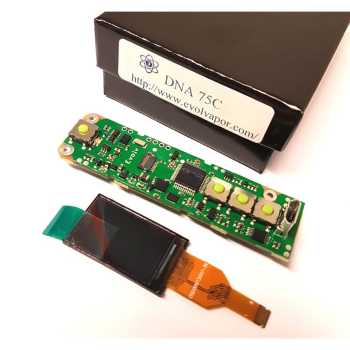

Evolv DNA 75C (Color) Board with board holder

Evolv DNA 75C (Color) Board with board holder

SKU: EV-DNA-75C-mit
HAN: Evolv DNA75C mit Halter
Manufacturers: Evolv

Up to 75 watts and 160 x 80 TFT color screen.
Temperature control for Ni200 nickel, titanium and stainless steel wire.
Functions: Preheat, Boost .
Custom settings / curves with free Escribe software.
Input (batteries in series): 1 / 1S.

Data sheet and instructions: DNA 75 Color.pdf.
Control software: EScribe.
Link to the manufacturer: Evolv.

7404: Board holder54,31 €

Board holder52,74 €

54,31 €

incl. 19% VAT , plus

From	Unit price
5	50,72 €*
10	49,62 €*
20	48,67 €*

When buying different article variants together, the scale prices also apply.

Available immediately
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

This item has variations. Please select the requested variation.

Configure

Matching accessories

optional

Order now - in a bundle with discount

2 x Delo Duopox rapid 01, 2-component universal high-performance epoxy adhesive, 3g +8,71 € +8,28 €

Universal 2k epoxy resin adhesive, room temperature curing
Preparation: Surfaces to be bonded should be dry, free of dust, grease and other contaminants
Processing: Cut open the sachet, empty the contents completely and mix both components intensively for approx. 30 s
Working time 4 minutes. Curing Manual strength 8 minutes, functional strength 2 hours, final strength 24 hours.
✔ Conveniently packaged in packs of 2.

Item details

Quantity: 1

V&M button for Evolv DNA boards, golden yellow (brass) +6,93 € +6,50 €

Four push buttons for Evolv DNA boards. One large power button (Ø 8mm) and three small control buttons (Ø 4mm)
Length optimized for boxes with a wall thickness of 2mm
Three different colours/materials: silver (stainless steel), black (anodized aluminium), golden yellow (brass)

Item details

Quantity: 1

V&M button for Evolv DNA boards, color: silver (stainless steel) +6,65 € +6,22 €

Four push buttons for Evolv DNA boards. One large power button (Ø 8mm) and three small control buttons (Ø 4mm)
Length optimized for boxes with a wall thickness of 2mm
Three different colours/materials: silver (stainless steel), black (anodized aluminium), golden yellow (brass)

Item details

Quantity: 1

Goobay solder lead-free, with flux, 3.5% silver, ø 1.0 mm, 12.5 g +5,02 € +4,47 €

Composition: 3.5 % silver, 0.7 % copper, 93.8 % tin; flux content: 2 %; melting point 217° C
significantly improved electrical conductivity due to silver content (3.5 %)
no cleaning of solder joints after soldering necessary
"No-clean solution" with continuous flux cores
halogen-free and low smoke emission.

Item details

Quantity: 1

Cable set for DNA75C, red/black, AWG 14, 18, 24, 15cm each - Item currently out of stock +4,16 € +3,73 €

Suitable for DNA60 chip according to Evolv specifications
Silicone cable highly flexible and fine-stranded according to DIN VDE 0295 Kl.6
2 x AWG 14, each 15cm, red/black
2 x AWG 16, each 15cm, red/black
2 x AWG 24, each 15cm, red/black

Item details

Quantity: 1

V&M heat shrink tubing assortment, black/red, 127 parts, 2/2.5/3.5/5/7/10/13mm +4,11 € +3,56 €

Sizes specially adapted for modding
From 2mm cable (AWG22) up to 510s, pushbuttons, mosfet
In the colors red and black
Shrink ratio 2:1

Item details

Quantity: 1

Your configuration

incl. 19% VAT , plus shipping costs

Description

The DNA 75C (Color) is an up to 75 Watt DC / DC converter with digital power control.

It features EVOLV's patented power control, patent pending thermal protection, preheat, digital user control, OLED screen, integrated buttons, synchronous rectification for minimal heat generation and a 160 x 80 pixel color TFT screen.

The DNA 75C chipset is powered by a single cell lithium battery.

The chipset can be controlled and configured via the USB port and the free EScribe software from Evolv.
