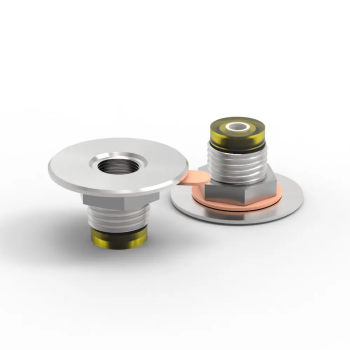

Source 510 Konnector V3, spring-loaded, for battery carrier/tubes, 30mm, silver

Source 510 Konnector V3, spring-loaded, for battery carrier/tubes, 30mm, silver

SKU: SV-Source-V3-30
HAN: Source 510 Connector V3 30 silver
Manufacturers: Stealth Vape

The popular Source Connector from Steath-Vape in version 3.
Available with 22 and 30 mm Top Cap.
Each in the colors silver (stainless steel) and black.
As well as with the soldering options standard and vFlat.
Now again with the usual M10 thread.

Variant: 22mm top cap10,31 €

22mm top cap, black10,31 €

30mm top cap10,81 €

30mm top cap, black10,81 €

10,81 €

incl. 19% VAT , plus

From	Unit price
2	9,95 €*
3	9,58 €*
5	9,20 €*

When buying different article variants together, the scale prices also apply.

Available immediately
Delivery time: 1 - 2 Workdays (DE - int. shipments may differ)

Description

Direct from the manufacturer, the company Stealth Vape in England - the new Source 510 connector V3 M10.

The connector is available with two soldering options. Standard: Vertical soldering directly into the center pin. vFLAT: Horizontal soldering to a pre-tinned connector.

Equipped with 22mm or 30mm Top Cap, each as "Flat Top" , i.e. without cutouts. Since the Top Cap has a thickness of only 1mm, it is not necessary to make a recess in the housing.

Available in silver (stainless steel) or black, the black color has been vacuum deposited (PVD process) and is therefore extremely durable.

The connector can be soldered without prior disassembly, use flux and do not exceed the melting point of PTFE at 327 ° C.

Technical data.

C14500 Tellurium Copper Core - Provides resistance stability and is tarnish/oxidation resistant.
RoHS tinned for superior solder bonding.
Two-Piece PEI Insulator - Insulated at top and bottom to ensure no current flows through the spring.
Double O-rings - Both the center pin and insulator have an O-ring that provides leak-proof operation for pressures of 25 psi and above. (Tested with compressed air up to 25 psi/1.7 bar).
C14500 copper.
vFLAT - Horizontal solder option with the innovative pre-tinned RoHS vFLAT solder connection.
Stainless Steel Wave Spring - Custom manufactured to provide over 7 kg of force at full compression.

Color:	Silver / Stainless steel
Height:	12.85 mm
Top cap Ø:	30 mm
Dimensions ( Length × Width × Height ):	3,00 × 3,00 × 1,29 cm
Included items:	Article itself
Material:	Stainless steel, copper, PEI (high performance plastic)
